1U

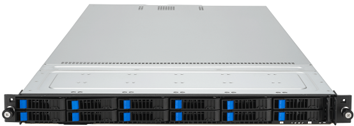

CR1212RS700(12 x U.2 Bays, 2 Sockets, 32D, 파워 이중화, SPR/EMR)

본문





*) 특징

 - 12 x 2.5" NVMe/SATA/SAS Hot-plug Bays

 - Supports two Intel® 4/5th Generation Xeon® Scalable processor family,350W maximum processor TDP

 - Up to 32 DDR5 DIMMs, up to 12 TB total memory(dependent on memory type)

 - Two(2) Intel 1/10Gb-T Ethernet Controller

 - 1U Rack Form Factor


Processor

:  (2) Intel 4th(Sapphire rapids)/5th(Emerald Rapids) Xeon 8400/6400/5400/4400 Processor(Socket-E 4677)

:  Max TDP up to 350W

 Chipset

:  Intel C741

 Slots

:  (1) PCIe G5 x16 FHFL, (1) PCIe G5 x8 LP(Internal), (1) PCIe G5 x16 LP

 Memory Capacity

:  32 DIMM slots supporting up to 12TB

:  DDR5 REG ECC RDIMM/3DS-RDIMM/9x4-RDIMM 4400/4800

:  Intel Optane PMem 300 series

 LAN:  (2) Intel X710 10Gb-T Ethernet Controller

 Onboard Video

:  Onboard Aspeed AST2600 64MB
 I/O Ports

:  (2) M.2 connectors - SATA 6Gbs & PCIe4 x8

:  (12) SATA 6Gb/s

:  (2) USB3.2 G1 ports (@ Rear) / (2) USB3.2 G1 ports (@ Front)

:  (2) D-Sub 15-pin port (@ rear)

:  (2) 10GbE ports, (1) dedicated GbE for IPMI ( @ rear)

 Drive bays

:  (12) 2.5" Hot-swap NVMe/SATA/SAS Bay

  * HBA/RAID is required to support SATA/SAS hard drives

 Management

:  IPMI 2.0 compliant baseboard management controller

 Power Supply

:  1600Watts*2ea (200-240Vac input) PFC / 80 plus Platinum 1+1 Redundant

 Dimensions(H x W x D)

:  44mm x 439.5mm x 842.5mm 1U
