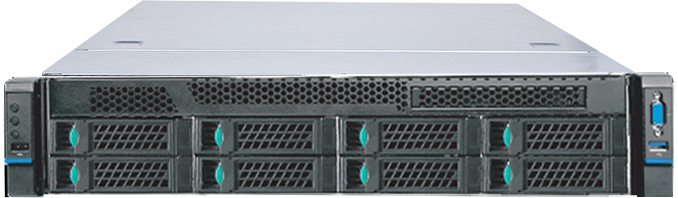

CR2308STBMC (2 Sockets, 파워 이중화, CLX)

본문



*) 특징

 - Supports two Intel® Xeon® processor Scalable family,205 W maximum processor TDP

 - Up to 16 DDR4 DIMMs, up to 2 TB total memory(dependent on memory type)

 - Two(2) 10Gb-T Ethernet Controller

 - Two(2) 850W Redundant Power Supply Unit




Processor

:  (2) Intel  Xeon (Skylake) Scalable Processor / Intel Xeon 2nd(Cascade Lake) Scalable Processor Family(Socket 3647)
:  Max TDP   up to 205W

 Chipset

:  Intel C624

 Slots

:  (3) PCI-E Gen3 x16/LP, (3) PCI-E Gen3 x8/LP

 Memory Capacity

:  16 DIMM slots supporting up to 2TB

:  DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / DDR4 JEDEC NVDIMM 2666 /

:  Intel Optane DC Persistent Memory Module (DCPMM)

 LAN:  (2) 10Gb-T ports Intel X722

 Onboard Video

:  Onboard Aspeed AST2500
 I/O Ports

:  (4) OCuLink connectors - Intel VMD support, Intel RSTe/Intel VROC support

:  (2) single port 7-pin SATA connectors

:  (2) M.2 connectors - SATA / PCIe

:  (2) 4-port mini-SAS HD(SFF-8643) connectors - Intel Embedded RSTe or ESRT2 support(optional RAID 5 key)

:  (2) USB3.0 ports (@ rear) / (2) USB2.0 ports (@ rear)/ (2) USB2.0 ports (@ front)

:  (1) Internal DH-10 serial Port A connector(@ internal)

:  (1) D-Sub 15-pin port (@ rear)

:  (2) 10GbE ports, (1) dedicated GbE for IPMI

 Drive bays

:  (8) 3.5" Hot-swap, Tool-less SSD/HDDs

 Management

:  IPMI 2.0 compliant baseboard management controller

 Power Supply

:  (2) 850Watts (200-240Vac input) PFC / 80 plus Gold 1+1 Redundant

 Dimensions(H x W x D)

:  88.1mm x 432mm x 661.4mm
