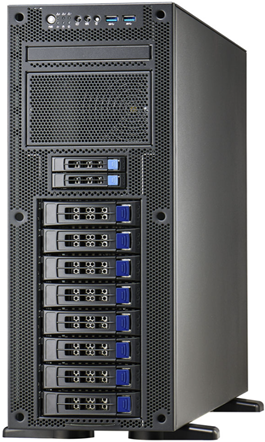

CP4308GM4(1S, 8 DIMMs, EPYC-9005)
본문
*) 특징
- Supports One(1) AMD EPYC 9005(Turin)/9004(Genoa,Bergamo) processor family, Up to TDP 400W
- Up to 8 DDR5 DIMMs, up to 2 TB total memory(dependent on memory type)
- 8 x 3.5/2.5" Hot-plug Bays
- Two(2) 10Gb-T Ethernet Controller
- Pedestal Form Factor
Processor | : (1) AMD EPYC 9005(Turin)/9004(Genoa,Bergamo) Processor(SP5 LGA6096P) : Max TDP up to 400W |
Micro architecture | : Zen 5 |
Slots | : (4) PCIe G5 x16 FHFL, (1) PCIe G5 x16 FHHL, (1) PCIe5 x8 LPHL |
Memory Capacity | : 8 DIMM slots supporting up to 2TB : DDR5 REG ECC RDIMM/3DS 6000MHz : Support 32/64/96/128/256GB per slot |
| LAN | : (2) Intel x710 10Gb-T Ethernet Controller |
Onboard Video | : Onboard Aspeed AST2600 64MB |
| I/O Ports | : (2) M.2/NVMe PCIe4 22110/2280 : (12) SATA - (2) mSAS x8 for 8P SATA3 6Gb/s Raid0/1/5(RSTe) & (4) 7-pin SATA Connectors : (2) MCIO x8, (2) MCIO x4 : (2) USB3.2 ports (@ Rear) / (4) USB3.2 G1 ports (@ Front) : (1) DB-9 COM connector : (1) VGA port(@ Rear) : (2) 10Gb-T ports, (1) dedicated GbE for IPMI |
Drive bays | : (8) 3.5/2.5" Tool-less Hot-swap Bay |
Management | : IPMI 2.0 compliant baseboard management controller |
Power Supply | : 1200Watts (200-240Vac input) PFC / 80P GE |
Dimensions(H x W x D) | : 427mm x 176mm x 650mm Pedestal |
