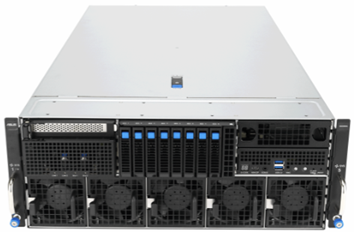

CR4208ESC8KE12(2S, 32 DIMMs, Xeon-GNR, 8-H200/P6K)
본문
*) 특징
- Supports two Intel® Xeon® 6 Scalable processor family,350W maximum processor TDP
- Up to 32 DDR5 DIMMs, up to 4 TB total memory(dependent on memory type)
- Up to 8 GPUs - NV H200, NV RTX PRO 6000 Blackwell
- Two(2) Intel 1/10Gb-T Ethernet Controller
- 8 x 2.5" Hot-plug Bays
- 4U Rack Form Factor
Processor | : (2) Intel Xeon® 6 Sierra Forest/Granite Rapids-SP 6000E/P Processor(FCLGA4710) : Max TDP up to 350W |
Generation | : E12 |
Slots | : (8) PCIe G5 x16 FHFL, (1) PCIe5 x16 FHHL, (1) PCIe5 x8/16 FHHL, 1 PCIe5 x8/16 HBA/RAID FHHL |
Memory Capacity | : 32 DIMM slots supporting up to 4TB : DDR5 REG ECC RDIMM/MCR-DIMM 6400/5200 : 16/32/64/128GB |
| LAN | : (2) Intel X710 10Gb-T Ethernet Controller |
Onboard Video | : Onboard Aspeed AST2600 64MB |
| I/O Ports | : (2) M.2 connectors PCIe5 x4, Up to 22110 : (4) MCIO x8 : (1) USB3.2 G1 ports (@ Rear) / (2) USB3.2 G1 ports (@ Front) : (1) Mini-DP port (@ Front) : (2) 10GbE ports, (1) dedicated GbE for IPMI |
Drive bays | : (8) 2.5" Hot-swap, Tool-less NVMe/U.2 - (4) MCIO x8 & (2) SlimSAS x4(requires HBA Card) |
Management | : IPMI 2.0 compliant baseboard management controller |
Power Supply | : 3200Watts*4ea (200-240Vac input) PFC / 80 plus Titanium 3+1 Redundant |
Dimensions(H x W x D) | : 175mm x 439.5mm x 800mm 4U / 42kg |
