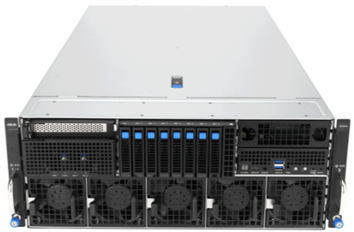

CR4208ESC8KA13(2S, 24 DIMMs, EPYC-9005, 8-H200/P6K)
본문
*) 특징
- Supports two AMD EPYC 9005 (Turin) processor family, Up to TDP 400W
- Up to 24 DDR5 DIMMs, up to 3 TB total memory(dependent on memory type)
- Up to 8 GPUs - NV H200, NV RTX PRO 6000 Blackwell
- Two(2) Intel X710 10Gb-T Ethernet Controller
- 8 x 2.5" Hot-plug Bays
- 4U Rack Form Factor
Processor | : (2) AMD EPYC 9005 Turin Processor(SP5 LGA6096P) : Max TDP up to 500W |
Generation | : E13 |
Slots | : (8) PCIe G5 x16 FHFL, (1) PCIe G5 x16 FHHL, (1) PCIe5 x8/16 FHHL, (1) PCIe5 x8/16 Raid(@Front) |
Memory Capacity | : 24 DIMM slots supporting up to 3TB : DDR5 REG ECC RDIMM 6400/5600/3DS : Support 32/64/96/128GB per slot |
| LAN | : (2) Intel X710 10Gb-T Ethernet Controller |
Onboard Video | : Onboard Aspeed AST2600 64MB |
| I/O Ports | : (4) MCIO x8 : (1) USB3.2 ports (@ Rear) / (2) USB3.2 G1 ports (@ Front) : (1) Mini-DP port(@ Front) : (2) 10Gb-T ports, (1) dedicated GbE for IPMI |
Drive bays | : (8) 2.5" Tool-less Hot-swap Bay, (4)MCIO x8 & (2)SlimSAS for SAS/SATA(requires Raid Card) : **Up to 6 NVMe devices(requires HBA/RAID Card) |
Management | : IPMI 2.0 compliant baseboard management controller |
Power Supply | : 3200Watts * 4ea (200-240Vac input) PFC / 80 plus Titanium 3+1 Redundant |
Dimensions(H x W x D) | : 175mm x 439.5mm x 800mm / 42kg / 4U |
