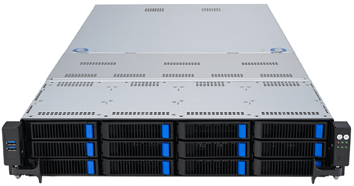

CR2312RS720E12(2S, 32DIMMs, 파워 이중화, Xeon-GNR/SRF)
본문
*) 특징
- Supports two Intel® Xeon® 6 Scalable processor family,350W maximum processor TDP
- Up to 32 DDR5 DIMMs, up to 4 TB total memory(dependent on memory type)
- Two(2) Intel 1/10Gb-T Ethernet Controller
- 2U Rack Form Factor
Processor | : (2) Intel Xeon® 6 Sierra Forest/Granite Rapids-SP 6000E/P Processor(FCLGA4710) : Max TDP up to 350W |
Generation | : E12 |
Slots | : (3) PCIe G5 x16 FHFL, (2) PCIe5 x16 FHHL, (2) OCP3 G5 x16 SFF |
Memory Capacity | : 32 DIMM slots supporting up to 4TB : DDR5 REG ECC RDIMM/3DS 5200/6400 : 16/32/64/128/256GB |
| LAN | : (2) Intel X710 10Gb-T Ethernet Controller |
Onboard Video | : Onboard Aspeed AST2600 64MB |
| I/O Ports | : (2) M.2 G4 x2 connectors - 2280/2260 : (8) MCIO x8 for NVMe : (2) USB3.2 G1 ports (@ Rear) / (2) USB3.2 G1 ports (@ Front) : (1) Mini-DP port (@ rear) : (2) 10GbE ports, (1) dedicated GbE for IPMI |
Drive bays | : (12) 3.5/2.5" Hot-swap, Tool-less Bays, NVMe/U.2 or SAS/SATA(requires HBA/Raid Card) |
Management | : IPMI 2.0 compliant baseboard management controller |
Power Supply | : 2700Watts (200-240Vac input) PFC / 80 plus Titanium 1+1 Redundant |
Dimensions(H x W x D) | : 88mm x 449mm x 830mm 2U / 18.195kg |
